Product Properties & Features
Properties
- Pressure resistance, high mechanical collapse strength
- Acid & alkali corrosion resistance, rust-proof
- High temperature resistance
- Stable filtration accuracy
- Smooth filtering surface
Features

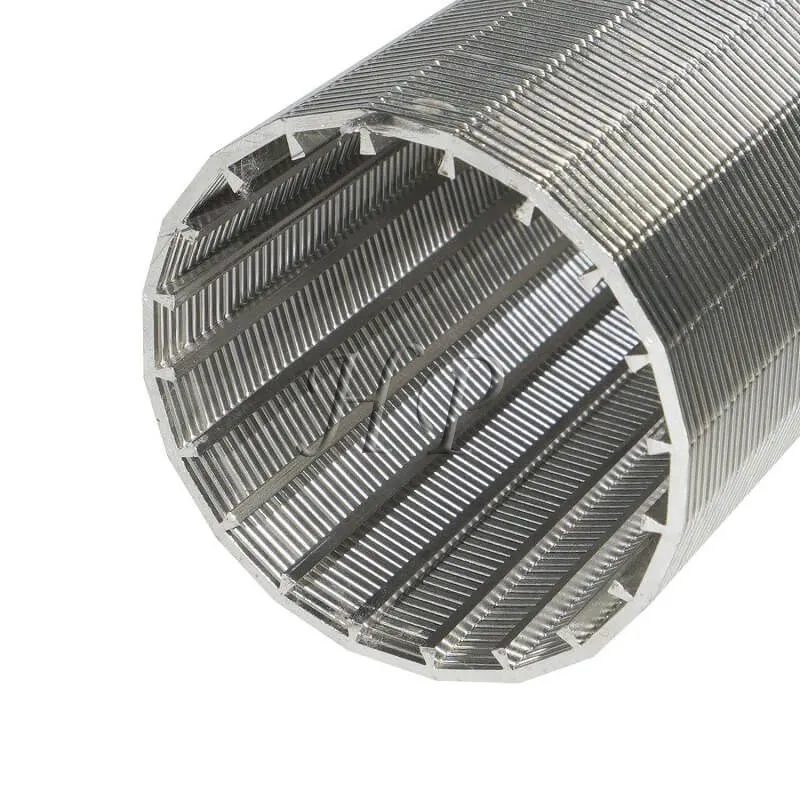

✅ Non-clogging V-slot design: Wide inside and narrow outside, particles are easy to flush out during backwash
✅ Fully resistance welded structure, no wire shedding
✅ Uniform and consistent slot gap, reliable filtration precision
✅ Large open area, low pressure drop, high flow capacity
✅ Easy cleaning and reusable
✅ All dimensions and end fittings support full customization.
Application Scenarios
- Water well / deep well / geothermal well sand control, groundwater intake screen
- Wastewater treatment, industrial circulating water filtration, self-cleaning filter elements
- Petrochemical, oil & gas sand control, resin trap in ion exchange system
- Food & beverage, pharmaceutical filtration (food-grade stainless steel)
- Mining dewatering, coal slurry separation, mineral processing
- Aquaculture water intake, seawater desalination, brackish water treatment
- Paper pulp filtration, starch industry centrifugal screen basket
Company & Product Advantages (Anping County Haopeng Metal Wire Mesh Co., Ltd.)
1. Factory direct manufacturer located in Anping, the hometown of wire mesh in China; 15,000㎡ factory area, complete automatic welding production lines, stable delivery capacityhp-wiremes...
2. Rich customization capability: We develop drawings according to customer requirements, support special diameter, slot, thread/flange interface, special alloy materials
3. Strict quality control: 100% slot inspection, material test certificate, dimension report available
4. Competitive factory price, low MOQ, sample service for test
5. Rich export experience, professional technical team to recommend slot and material solution based on working medium, particle size, pressure and corrosion environment
6. Various supporting filter products together supply: perforated filter tube, sintered mesh filter, pleated metal filter cartridge, etc. One-stop procurement
Customer Feedback
“Slots are very even, welding is solid, backwashing effect is good, much better than woven mesh filter.”
“We used it for water well sand control. No sand entering the pump after one year running.”
“Haopeng provided material selection suggestion for our seawater project, 2205 duplex steel works perfectly.”
“Fast sample delivery, they adjusted the thread size according to our filter housing drawing.”
FAQ
Q1: What information do you need for quotation?
A: Material grade, outer diameter, length, slot opening, end connection, working medium, pressure and quantity. Drawing is highly appreciated.
Q2: What is your minimum slot size?
A: The smallest slot we can make is 0.05 mm. The slot will be suggested according to your particle size.
Q3: Can you make special thread / flange ends?
A: Yes. Plain end, NPT thread, BSP thread, custom flange, coupling and special adapters are all available.
Q4: How to clean wedge wire screen tube?
A: Mainly backwash with water or air reverse flow. Stubborn dirt can use soft brush or compatible chemical cleaning. The V-shaped slot is anti-blocking and easy to clean.
Q5: What is the difference between wedge wire tube and woven mesh filter tube?
A: Wedge wire tube has higher strength, larger open area, anti-clogging continuous slot, better pressure resistance and longer service life. Woven mesh is usually for finer low-pressure filtration.
Q6: What is the lead time? MOQ?
A: Sample: 3–7 days. Mass order: 15–25 days. Low MOQ, we accept small trial orders.
Q7: Which material should I choose?
A: SS304 for normal fresh water; SS316L for general corrosive water, food & pharma; 2205/2507 duplex steel for seawater, high chloride environment; Hastelloy for strong acid medium.
Q8: Can you provide test certificates?
A: Yes, material certificate (3.1), dimension inspection report and packing photos can be supplied.
