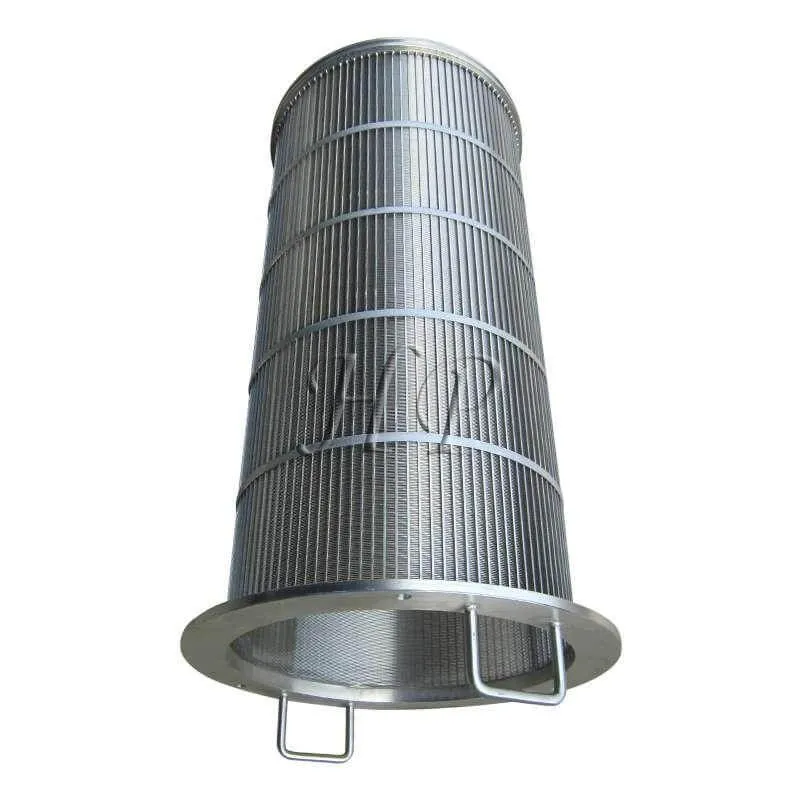

Wedge Wire Screen Tube

Product Introduction:

Wedge Wire Screen Tube Usually made of carbon steel, galvanized, stainless steel (302, 304, 304L, 316, 316L).

MORE DETAILS

Wedge wire screen tube, also called wedge wire screen pipe, is made of stainless steel wires. Because of outstanding chemical stability and corrosion resistance.


The wedge wire screen tube is composed of working profile and support profile. It is welded on an special automotive machine. The support profiles are placed on the proper position of the machine, during the surface profiles are spirally wounding and welded into the surface profiles.


Structure of Wedge Wire Pipes:

The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.

The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot has more open area, and it can reduce the speed of the water entering to avoid the sand entering the pipes under the great pressure, so it can filter sand better. Meanwhile, the slot of wedge wire pipe can change according to the real condition of the earth.


Materials: Stainless steel430, 321, 304, 304L,316 or 316L, etc. Other materials as per requirement.


Technical Information

Material: 304, 304L, 316, 316L, 321, 310S, Duplex steel, Hastelloy, Titanium alloy, etc. Regular products are available from stock, with excellent stock prices and fastest delivery.

Tube diameter: 0.5" – 60". Support for ordering larger pipe diameters, regular sizes are available in molds and stock.

Tube length: 0.3 m, 0.6 m, 1 m, 2 m, 3 m, and 6 m. Special sizes can be customized.

Slot size: 0.02 mm – 2.5 mm.

Surface profile type: Triangle wire.

Support profile: Triangular (V-shaped, wedge), round rod, flat bar, water-drop, and square wire.


Product Features:

1. The continuous gap greatly increases the water flow area, so it has better contact with the aquifer.


2. The V-shaped profile structure avoids blockage, ensures smooth flow, and the continuous gap can be used effectively for a long time.


3. The trapezoidal filter pipe has a strong structure, high porosity, precise gap size, easy backwashing, long service life, safe and reliable.


Application

Wedge Wire Screen Tube can be used with deep well pumps and submersible pumps, and can also be used in water treatment equipment, environmental protection, desalination of seawater into industrial water and domestic water, tap water treatment, water softening treatment, and petrochemical industry.



Product advantages:

1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5. Long live: Welded at each intersection creating a strong and durable screen.

6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.


Wedge Wire Screen Tube


Specifications
Common Specifications of Plain Wedge Wire Screen Tube
Common Specifications of Plain Wedge Wire Screen Tube
Item CodeScreen (O.D.) (mm)Support Rod (mm)Support Rod No.Screen V-Wires
HPWT-19192 × 380.75 × 1.5, 1 × 2
HPWT-25.425.42 × 380.75 × 1.5, 1 × 2
HPWT-30302 × 380.75 × 1.5, 1 × 2
HPWT-32322 × 380.75 × 1.5, 1 × 2
HPWT-33.533.52 × 380.75 × 1.5, 1 × 2
HPWT-33.5362 × 3100.75 × 1.5, 1 × 2
HPWT-40402 × 3101 × 2, 1.5 × 2.5
HPWT-42422 × 3101 × 2, 1.5 × 2.5
HPWT-45452 × 3101 × 2, 1.5 × 2.5
HPWT-48482 × 3101 × 2, 1.5 × 2.5
HPWT-50502 × 3121 × 2, 1.5 × 2.5
HPWT-53532 × 3121 × 2, 1.5 × 2.5
HPWT-53572 × 3121 × 2, 1.5 × 2.5
HPWT-60602 × 3161 × 2, 1.5 × 2.5
HPWT-63632 × 3181 × 2, 1.5 × 2.5
HPWT-68682 × 3201 × 2, 1.5 × 2.5
HPWT-70702 × 3221 × 2, 1.5 × 2.5
HPWT-76762 × 3161 × 2, 1.5 × 2.5
HPWT-80802 × 3201 × 2, 1.5 × 2.5
HPWT-85852 × 3201 × 2, 1.5 × 2.5
HPWT-89892 × 3201 × 2, 1.5 × 2.5
HPWT-95952 × 3281 × 2, 1.5 × 2.5
HPWT-1001002 × 3221 × 2, 1.5 × 2.5
HPWT-1101102 × 3221 × 2, 1.5 × 2.5
HPWT-1141142 × 3301 × 2, 1.5 × 2.5
HPWT-1201202 × 3, 3 × 5261 × 2, 1.5 × 2.5, 2 × 3
HPWT-1251252 × 3, 3 × 5341 × 2, 1.5 × 2.5, 2 × 3
HPWT-1301302 × 3, 3 × 5381 × 2, 1.5 × 2.5, 2 × 3
HPWT-1401402 × 3, 3 × 5241 × 2, 1.5 × 2.5, 2 × 3
HPWT-1501502 × 3, 3 × 5441 × 2, 1.5 × 2.5, 2 × 3
HPWT-1601602 × 3, 3 × 5461 × 2, 1.5 × 2.5, 2 × 3
HPWT-1801802 × 3, 3 × 5501 × 2, 1.5 × 2.5, 2 × 3, 3 × 5
HPWT-2002002 × 3, 3 × 5481 × 2, 1.5 × 2.5, 2 × 3, 3 × 5
HPWT-2502503 × 5, D5641 × 2, 1.5 × 2.5, 2 × 3, 3 × 5
HPWT-3003003 × 5, D520/30 mm1 × 2, 1.5 × 2.5, 2 × 3, 3 × 5
HPWT-3503503 × 5, D520/30 mm1.5 × 2.5, 2 × 4, 2 × 3, 3 × 5
HPWT-5005003 × 5, D520/30 mm1.5 × 2.5, 2 × 4, 2 × 3, 3 × 5
HPWT-6006003 × 5, D520/30 mm1.5 × 2.5, 2 × 4, 2 × 3, 3 × 5
HPWT-100010003 × 5, 5 × 6, 3 × 1220/30 mm1.5 × 2.5, 2 × 4, 2 × 3, 3 × 5
HPWT-126012603 × 5, 5 × 6, 3 × 1220/30 mm1.5 × 2.5, 2 × 4, 2 × 3, 3 × 5



RELATED FAQ
What is Wedge Wire Screen Tube?

The wedge wire filter element is a filter element composed of a "V" shaped stainless steel wire and a stainless steel support strip. Its smooth surface is the filter surface, and the gap is a strip, which belongs to the surface filtration form.

What are the primary applications of wedge wire Screen Tube?

Wedge wire filter elements are widely used in many fields, mainly including petrochemical, food and beverage, pharmaceutical, water treatment.

What is the difference between wedge wire filter elements and other wire mesh filter elements?

The wedge-shaped wire filter element has a higher filtration efficiency and can achieve extremely high filtration effects by controlling the particle gaps of the wedge-shaped mesh.


The wedge-shaped wire filter element is suitable for high-flow and high-pressure industrial filtration occasions, especially for industrial water, drinking water purification, sand separation and treatment, sewage treatment and other fields.

What is the material of wedge wire?

The main material of wedge wire is stainless steel. Specifically, wedge wire is usually made of high-quality stainless steel materials, such as 302, 304, 304L, 316L, etc.

Where are wedge wire screen tube used?

Industries include water treatment, oil and gas, pulp and paper, mining, and food and beverage.

What is the expected lifespan of wedge wire screen tube?

With proper maintenance, wedge wire screens can have a long lifespan, often exceeding 10 years.
