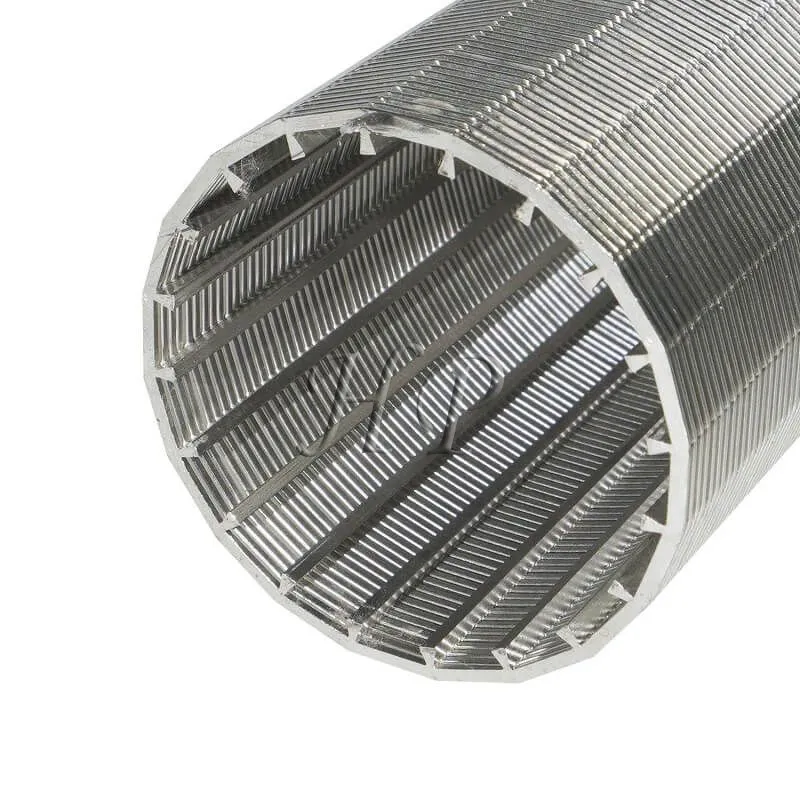

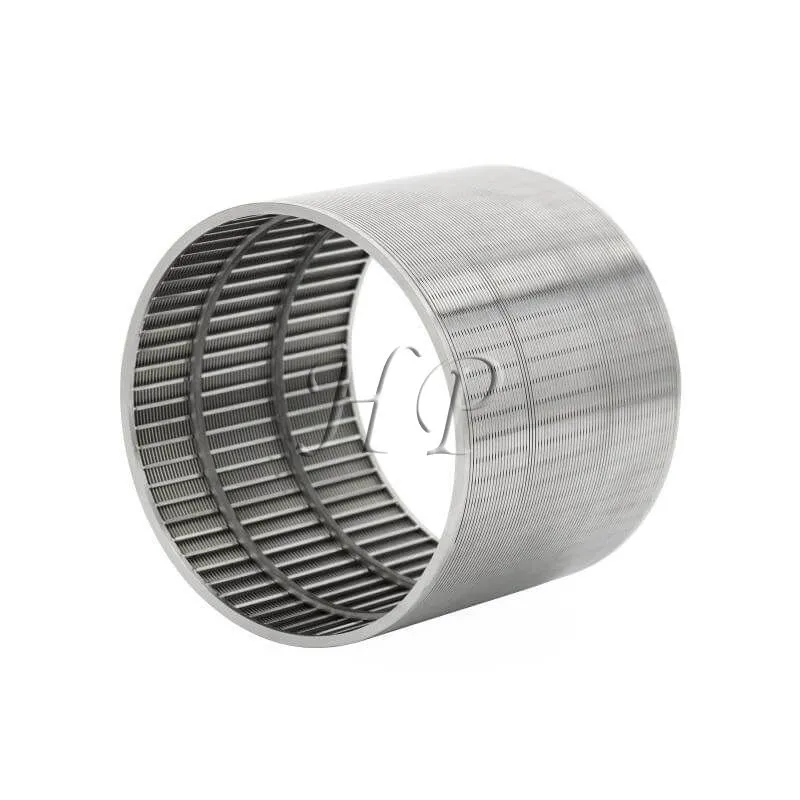

Wedge Wire Screen Tube
We are one of the leading Wedge Wire Pipe Supplier, providing customers with Wedge Wire Screen Tube at industry-leading prices.
Our professional engineering team provides comprehensive customization services for Wedge Wire Screen Tube, supporting customized pipe diameters, slot spacing and ports to suit different applications. Our products are manufactured in accordance with industry standards to meet your screen needs.
The V-shaped wire is welded on the rod to form a rigid unit with high strength and light weight. The V-shaped cross-section avoids clogging and ensures unimpeded water flow. The continuous slot has a larger opening area, which can reduce the speed of water flow entering and avoid sand entering the pipe under great pressure, thereby better filtering sand. At the same time, the slot of the wedge wire tube can be changed according to the actual situation on the surface.
Continuous Operation with Minimal Downtime
V-shaped profile wires create inward-widening slots that prevent clogging, ensuring uninterrupted flow and reduced system shutdowns.
Low Maintenance Requirements
Surface-based filtration allows for easy cleaning through scraping or backwashing, minimizing labor and maintenance costs.
High Filtration Efficiency
Precisely controlled slot openings enable accurate media separation without particle loss, optimizing process output.
Cost-Efficient Operation
Large open area facilitates high throughput and effective flow with minimal pressure drop (ΔP), reducing energy consumption.
Exceptional Durability
Welded wire intersections provide structural strength and extended service life, even in demanding environments.
Simplified Installation
Self-supporting design eliminates the need for additional support media, offering greater design flexibility and lower installation expenses.
Resistant to Harsh Conditions
Manufactured from corrosion-resistant stainless steels and exotic alloys to withstand high pressures, temperatures, and aggressive chemicals.
Wedge Wire Screen Tube is a water filter pipe that can be used with deep well pumps and submersible pumps. It can also be used in water treatment equipment, environmental protection, seawater desalination, tap water treatment, water softening, and petroleum industry.
Wedge Wire Screen Tube for General Industrial Applications
Sieve bends
Cylindrical screens
Centrifugal baskets
DEM screens
Pressure screens
Wedge Wire Screen Tube for Mineral & Aggregate Processing
Vee wire centrifuge baskets
Polyurethane modular screening systems
PU & wedge wire combination screens
Rubber screening systems
Woven wire screens and perforated plate panels
Wedge Wire Screen Tube for Petrochemical & Refining
Center pipes
Outer support baskets
Distributor trays
Nozzle systems
Scale traps
Wedge Wire Screen Tube for Pulp & Paper Industry
Screen baskets
Extraction plates
Filtrate cleaning systems
Fiber recovery units
Refurbishment services
Wedge Wire Screen Tube for Water Processing
Headworks screening
DAF (Dissolved Air Flotation) systems
Intake screens
Ultrafiltration systems
Triton underdrain systems
Wedge Wire Screen Tube for Water Well and Groundwater Applications
Stainless steel and PVC well screens
Riser pipes
Sand spears
Environmental monitoring well screens
Nu-Well rehabilitation and cleaning chemicals
Customization supported: Choose the matching wedge wire screen according to the application scenario and filtration accuracy.
Accurate filtration performance: The most advanced equipment ensures that the notch size of the screen is accurate and the roundness is high.
Various types: Wedge wire screens are available in different edge types and diameters.
Quality assurance: Surface pickling and passivation treatment ensure the top quality of the finished product.
For more information about Wedge Wire Screen Tube, please contact us!
